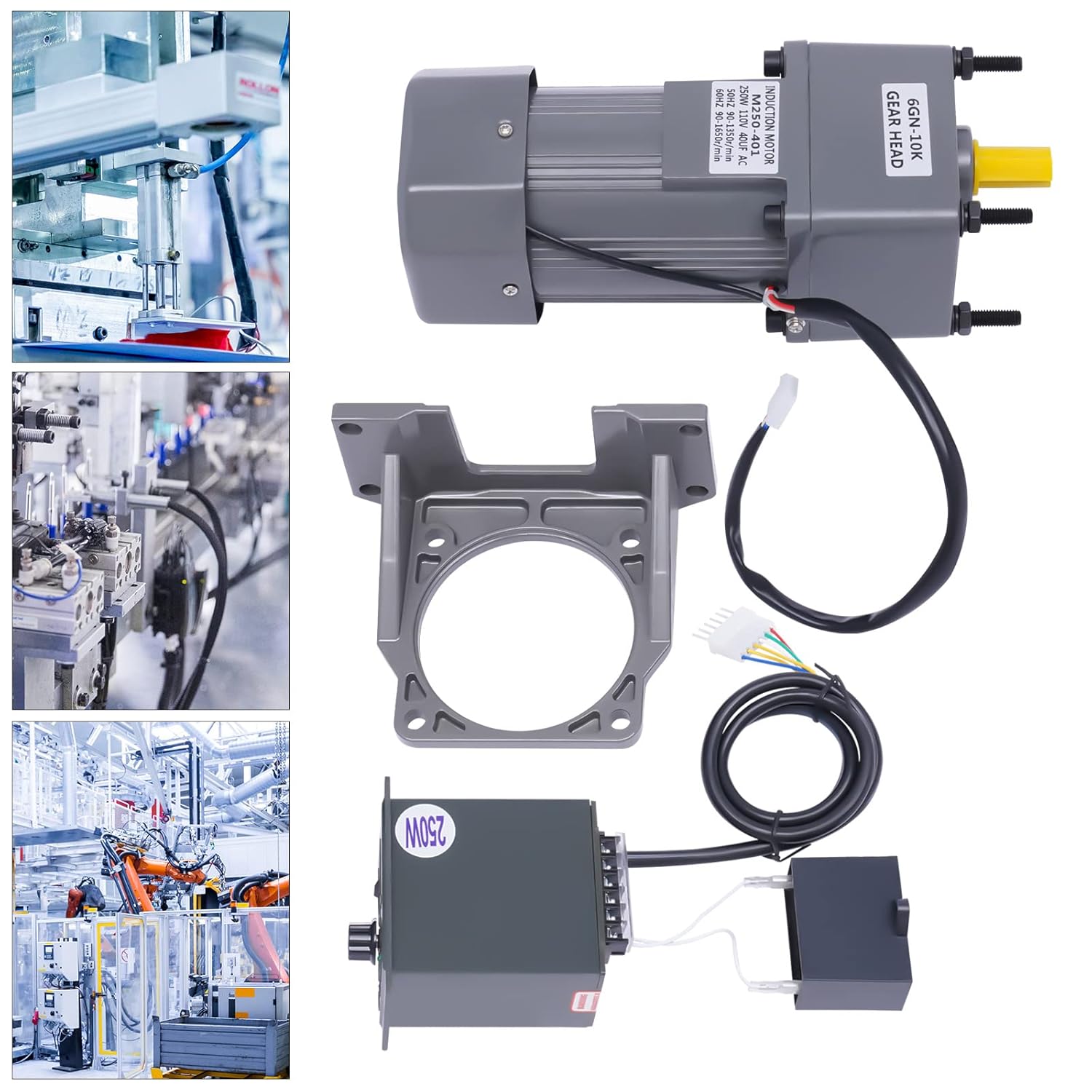

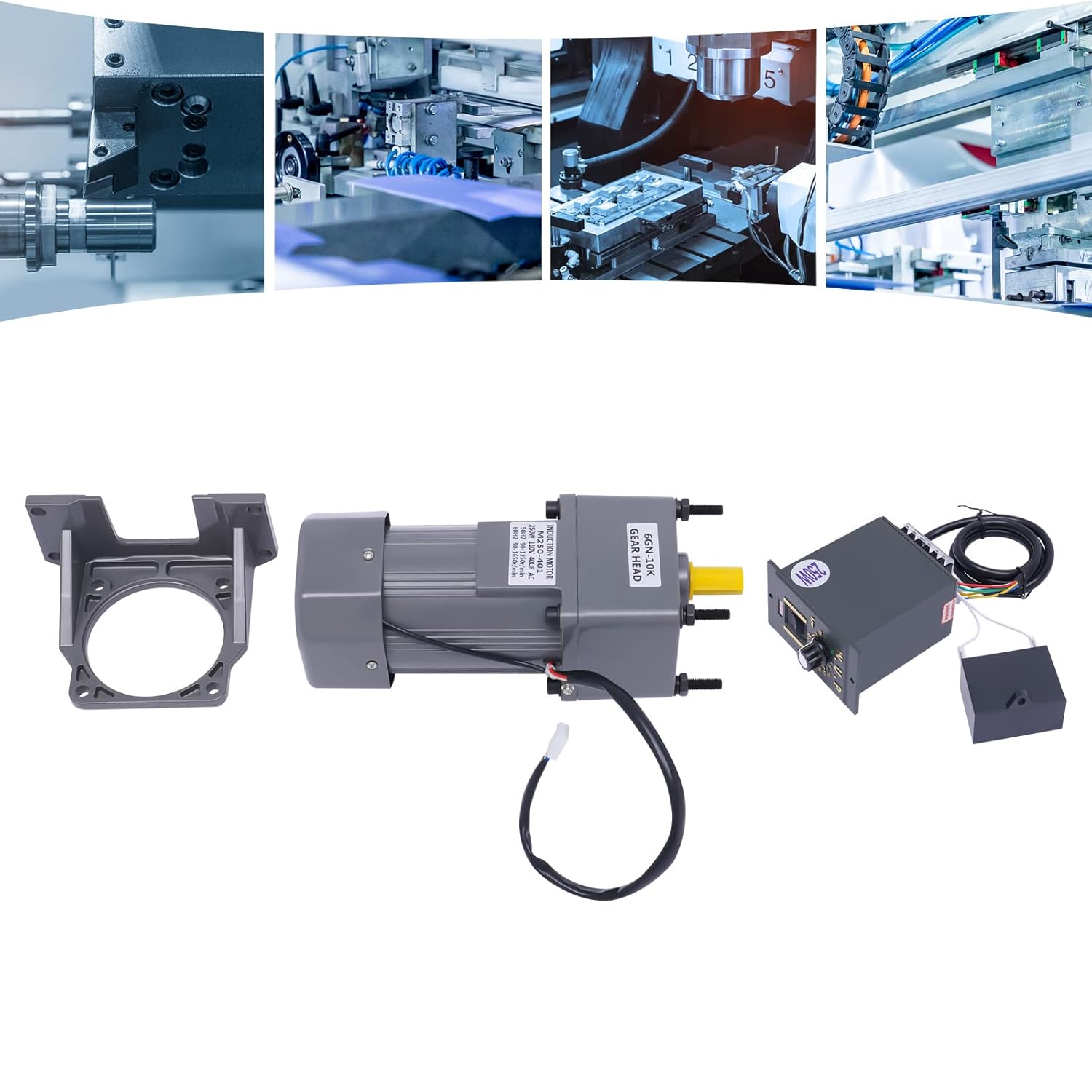

250W 110V AC Gear Motor Variable Speed Motor Reduction Controller High Torque Motor with Reduction Gearbox Speed Regulator and Bracket, 0-135rpm(10K)

Product parametersMaterial: Aluminum AlloyGear Material: SteelType: Single-PhaseCoil Material: CopperColor: GreyPower: 250WVoltage: 110V 60HzEngine Speed Ratio: 10K Torque: 8 N.mOutput Speed Range: 0-135rpm (Infinitely Adjustable Speed 0%-100%)Upper Side Length of Bracket: 10.4cm/4.1inchLower Side Length of Bracket: 16cm/6.3inchBracket Width: 7.5cm/3inchBracket Height: 12.5cm/4.9inchSpeed regulator Size: 9 * 6 * 10cm/3.5 * 2.4 * 3.9inchMotor Size: 19 * 10.4 * 8.4cm/7.5 * 4.1 * 3.3inchDimension of Reduction Gearbox: 6.6 * 10.4 * 8.4cm/2.6 * 4.1 * 3.3inchPacking Size: 33*26*13cm/12.99*10.23*5.11inGross Weight: 7.9kg/17.41lbsNet Weight: 7.3kg/16.09lbsPackage Included1 x Motor1 x Reduction Gearbox1 x Speed regulator1 x BracketNotes1.When the motor is working, it is normal for the temperature to rise to about 65℃/149℉. Please rest assured that it will not affect your use.2.Please do not knock the motor and the body of the Speed regulator.3.Please disconnect the power supply before changing the wire.4.Please allow the slight color difference caused by the light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

• 【Product parameters】Single-Phase; Power: 250W; Voltage: 110V 60Hz; Engine Speed Ratio: 10K ; Torque: 8 N.m; Upper Side Length of Bracket: 4.1in; Lower Side Length of Bracket: 6.3in; Bracket Width:3in; Bracket Height: 4.9in.
• 【High quality】The housing is made of high quality aluminum alloy, which is strong and durable and can protect the internal parts well. High precision steel gears are used, which effectively increases the torque of the motor. One-touch power switch, the indicator light of the speed regulator will light up when power is on. The side is equipped with threaded speed control knob, speed scale plate and connector wiring instructions, easy and convenient to operate.
• 【Flexible to use】It is mainly used to reduce the speed of a series of gears to produce more power torque. The output speed range is 0-135rpm (Infinitely Adjustable Speed 0%-100%) by the speed knob on the Speed regulator. Both forward and reverse rotation are possible. Initially, forward rotation is specified, but you can connect the wires on the C-C-W to the C-W, which can then be converted to reverse rotation.
• 【Stable operation】 It includes a motor, a bracket, a reducer and a speed regulator. The s-ta-tor and rotor are made of pure copper coils for continuous high and stable power output. The motor rotor is equipped with ball bearings at both ends, allowing it to run with low fri-c-tion, generating low temperatures and stable operation. The built-in fan and cooling holes provide good ventilation and heat dissipation.
• 【Widely used】The motor and gearbox are already installed, you just need to plug the regulator cable into the jack of the motor cable for quick connection. It can be widely used in packaging industry, printing industry, food, construction, machine tool industry, barbecue industry, etc. Suitable for advertising, office, sports equipment, instrumentation, stage lighting, automatic warehouse, parking lot and other equipment.
